Floating Joints/Rod End
Floating Joint J
![]() | ・The floating joint can absorb any off-centering or loss of parallel accuracy of the double acting cylinder, making centering unnecessary. |
Type | Series | Applicable cylinder bore size (mm) |
---|---|---|
Lightweight and compact type | JT | 20,25,32,40 |
Light weight type for light load | JC | 20,25,32,40,50,63 |
Standard | JA,JAF,JAL | 6,10,15,20,25,30,40,50,63,80,100,125,140,160 |
Standard | JA-X530,JAF-X530,JAL-X530 | 180,200 |
Heavy load | JAH,JAHF,JAHL | 40,50,63,80,100 |
For compact cylinders | JB | 12,16,20,25,32,40,50,63,80,100,125,140,160 |
Stainless steel | JS | 10,15,16,20,25,32,40,50,63 |

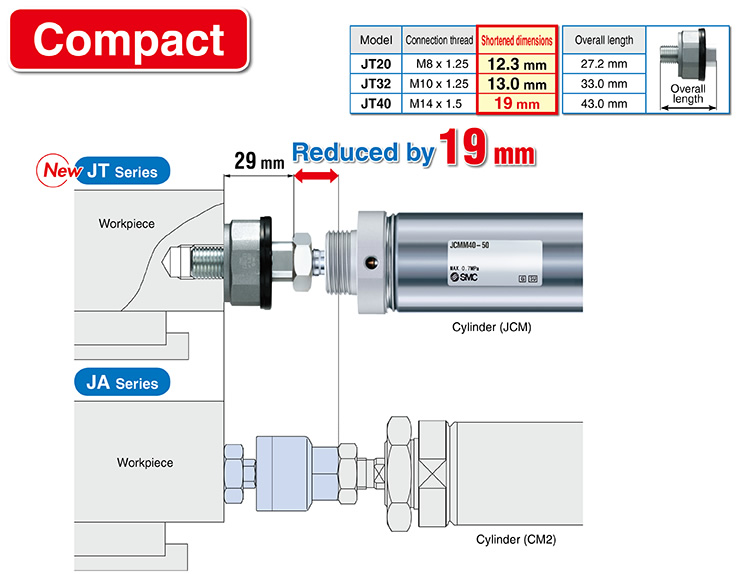

■Compact: Reduced by 19 mm

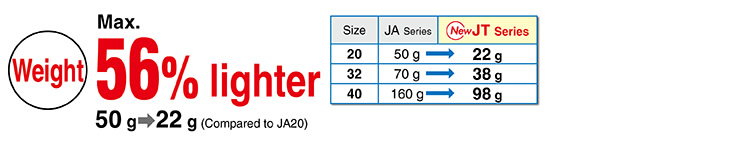

■Weight: Max.56% lighter (50g → 22g)

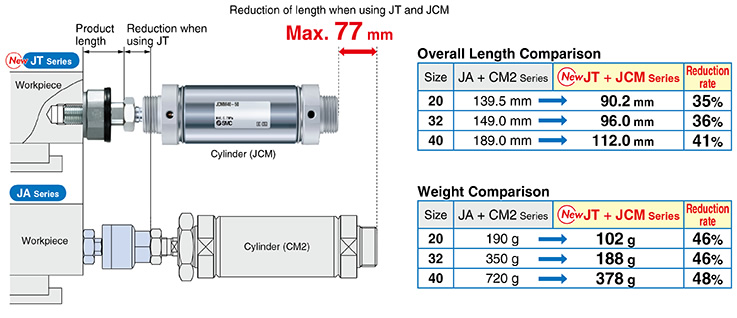

■More compact and light-weight combination are available by using the JT series with a JCM series cylinder.

■Screw size is the same as the screw size for standard JA series.
■With dustproof cover

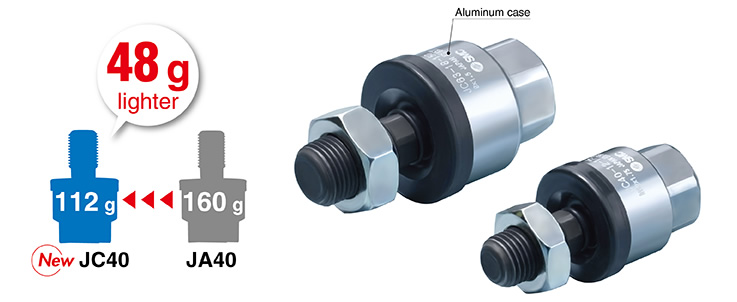

■Light weight With the aluminum case
Weight 30% reduction
*Compared to the existing model JA40

Product suitable for air cylinders
・Light weight mitigates lateral loads to air cylinders.
・Maximum tensile force equivalent to 1 MPa
■Floating joint compensates for any misalignment between the work piece and the air cylinder.

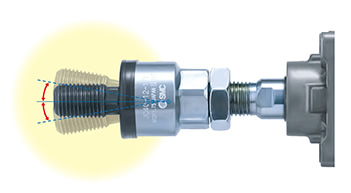

Rotating angle : ±5°

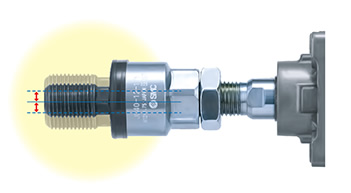

Allowable eccentricity : ±0.5 to 1 mm

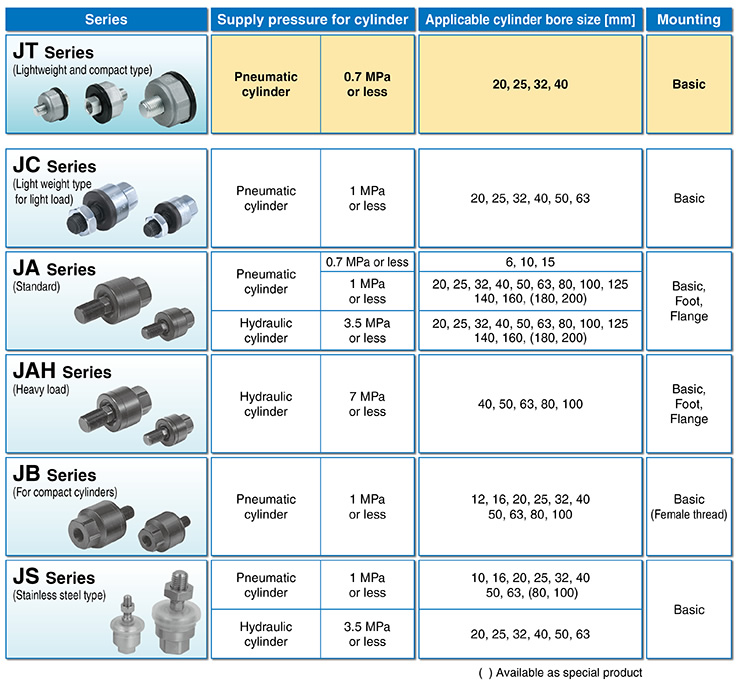

■Series Variations
